Description

Need a drainage cover with a gravel guard frame? These custom-sized drains have a 3/8″-thick ASTM-A36 carbon steel diamond plate cover with 3/8″-thick gusset reinforcements welded underneath the plate for support.

These drainage covers feature ½” wide drain slots and a nonskid surface for extra safety. Each drainage cover with a gravel guard frame is rated for H-20 wheel loading under 25 mph. The heavy-duty frame of these gravel grate frames are an all-welded construction, painted black. Select your custom frame height

Each of these custom drainage covers with a gravel guard frame is manufactured right here in the USA. Got any questions about our drain covers? Contact us for further assistance, or for a custom quote.

VIEW SPEC SHEET

CUSTOMIZE YOUR ORDER

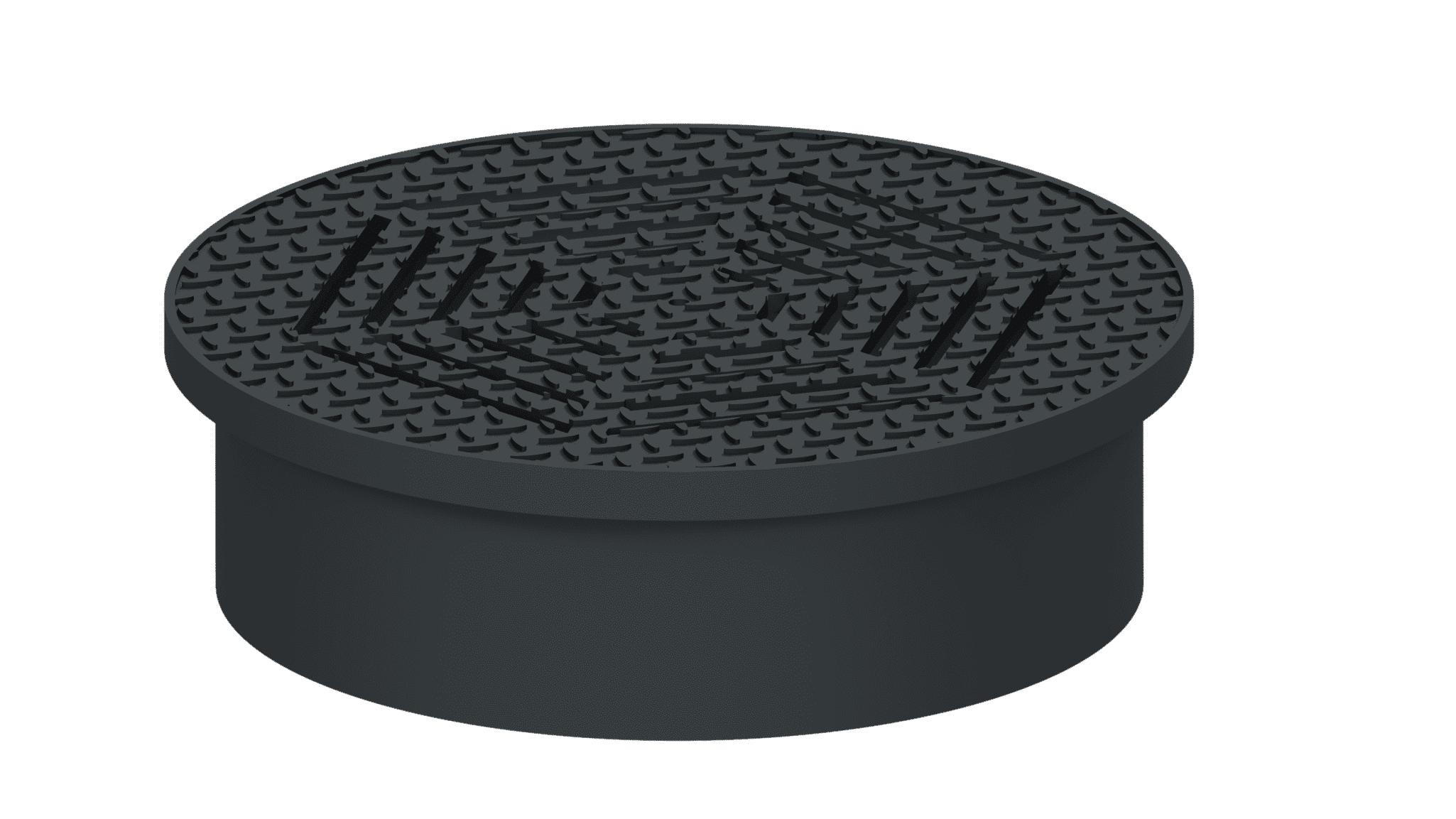

DRAIN MANHOLE WITH GRAVEL GUARD FRAME

ALL PURPOSE ASTM-A36 CARBON STEEL DRAIN GRATE MANHOLES DESIGNED TO BE INSTALLED IN CONCRETE APPLICATIONS. DIAMOND PLATE COVER WITH 1/2″ DRAIN SLOTS. RATED FOR H-20 SINGLE POINT WHEEL LOADING FOR VEHICLE TRAFFIC UNDER 25MPH. HEAVY DUTY T FRAME AND 14 GAUGE SKIRT, ALL WELDED CONSTRUCTION. PAINTED BLACK FINISH. MADE IN THE USA.

Choose cover diameter, cover style, and skirt length to create your custom selection.

Diameter:

  • Choose from 8″, 12″, 18″, 20″, 24″, 30″, 32″, 36″.

Frame:

  • Heavy-duty T frame with 14 gauge hot rolled carbon steel skirt
  • Choose frame depth of 4″, 6″, 8″, 12″ 18″, 24″, 36″

Cover:

  • A36 Carbon Steel Diamond Plate Cover
  • Non skid surface
  • H-20 wheel loading
  • 1/2″ drain slots

Finish:

  • Painted Black
  • Made in the USA

Gravel Guard Frame Installed View

Drain Frame and Cover
Drain Cover
Stainless Steel Drain Frame and Cover
Drain Cover
HD DRAIN COVER CONCRETE SURROUND

Need Solid Cover Instead?
