Description

ALL PURPOSE ASTM-A36 CARBON STEEL ACCESS MANHOLES ARE INTENDED FOR CONCRETE, ASPHALT, GRASS OR DIRT INSTALLATION. ADA COMPLIANT DIAMOND PLATE COVER WITH NON-SKID SURFACE. RATED FOR H-20 SINGLE POINT WHEEL LOADING FOR VEHICLE TRAFFIC UNDER 25MPH. HEAVY DUTY FLAT BAR FRAME, ALL WELDED CONSTRUCTION. PAINTED BLACK FINISH. MADE IN THE USA.

Choose cover diameter, cover style, and skirt length to create your custom selection.

Diameter:

  • Choose from 8″, 12″, 18″, 20″, 24″, 30″, 32″, 36″, 38″.

Frame:

  • Heavy-duty frame with flat bar skirt
  • Choose frame depth of 2″, 3″ 4″, 5″, 6″, 8″, 12″

Cover:

  • A36 Carbon Steel Diamond Plate Cover
  • Non skid surface
  • H-20 wheel loading
  • Cover Style:
    • Lay in with pick holes or handles
    • Bolt down with buna gasket and water-tight recessed handles and stainless steel hardware

Finish:

  • Painted Black
  • Made in the USA

Need Gravel Guard Frame Instead?

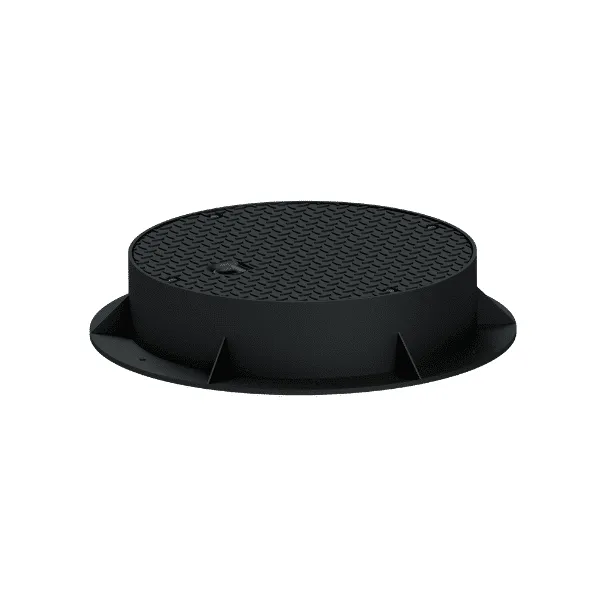

medium-round-manhole-lay-in

Choose cover diameter, cover style, and skirt length to create your custom selection.

Diameter:

  • Choose from 8″, 12″, 18″, 20″, 24″, 30″, 32″, 36″, 38″, 42″, 48″, 60″.

Frame:

  • Heavy-duty T frame with 14 gauge hot rolled carbon steel skirt
  • Choose frame depth of 4″, 6″, 8″, 12″ 18″, 24″, 36″

Cover:

  • A36 Carbon Steel Diamond Plate Cover
  • Non skid surface
  • H-20 wheel loading
  • Cover Style:
    • Lay in with pick holes or handles
    • Bolt down with buna gasket and water-tight recessed handles and stainless steel hardware

Finish:

  • Painted Black
  • Made in the USA

Need something special?
