Description
Measure the hole and choose you collar diameter to hold the cover in place.
Collar Diameter:
- Choose from: 12″ | 12 1/8″ | 12 1/4″ | 12 3/8″ | 12 1/2″ | 12 5/8″ | 12 3/4″ | 12 7/8″ | 13″ | 13 1/8″ | 13 1/4″ | 13 3/8″ | 13 1/2″ | 13 5/8″ | 13 3/4″ | 13 7/8″ | 14″ | 14 1/8″ | 14 1/4″ | 14 3/8″ | 14 1/2″ | 14 5/8″ | 14 3/4″ | 14 7/8″ | 15″ | 15 1/8″ | 15 1/4″ | 15 3/8″ | 15 1/2″ | 15 5/8″ | 15 3/4″ | 15 7/8″ | 16″ | 16 1/8″ | 16 1/4″ | 16 3/8″ | 16 1/2″ | 16 5/8″ | 16 3/4″ | 16 7/8″ | 17″ | 17 1/8″ | 17 1/4″ | 17 3/8″ | 17 1/2″ | 17 5/8″ | 17 3/4″ | 17 7/8″ | 18″ | 18 1/8″ | 18 1/4″ | 18 3/8″ | 18 1/2″ | 18 5/8″ | 18 3/4″ | 18 7/8″ | 19″ | 19 1/8″ | 19 1/4″ | 19 3/8″ | 19 1/2″ | 19 5/8″ | 19 3/4″ | 19 7/8″ | 20″ | 20 1/8″ | 20 1/4″ | 20 3/8″ | 20 1/2″ | 20 5/8″ | 20 3/4″ | 20 7/8″ | 21″ | 21 1/8″ | 21 1/4″ | 21 3/8″ | 21 1/2″ | 21 5/8″ | 21 3/4″ | 21 7/8″ | 22″ | 22 1/8″ | 22 1/4″ | 22 3/8″ | 22 1/2″ | 22 5/8″ | 22 3/4″ | 22 7/8″ | 23″ | 23 1/8″ | 23 1/4″ | 23 3/8″ | 23 1/2″ | 23 5/8″ | 23 3/4″ | 23 7/8″ | 24″ | 24 1/8″ | 24 1/4″ | 24 3/8″ | 24 1/2″ | 24 5/8″ | 24 3/4″ | 24 7/8″ | 25″ | 25 1/8″ | 25 1/4″ | 25 3/8″ | 25 1/2″ | 25 5/8″ | 25 3/4″ | 25 7/8″ | 26″
Cover:
- A36 Carbon Steel Diamond Plate Cover
- Non skid surface
- H-20 wheel loading
- Lay in style cover with (2) two pick holes
Finish:
- Painted Black
- Made in the USA

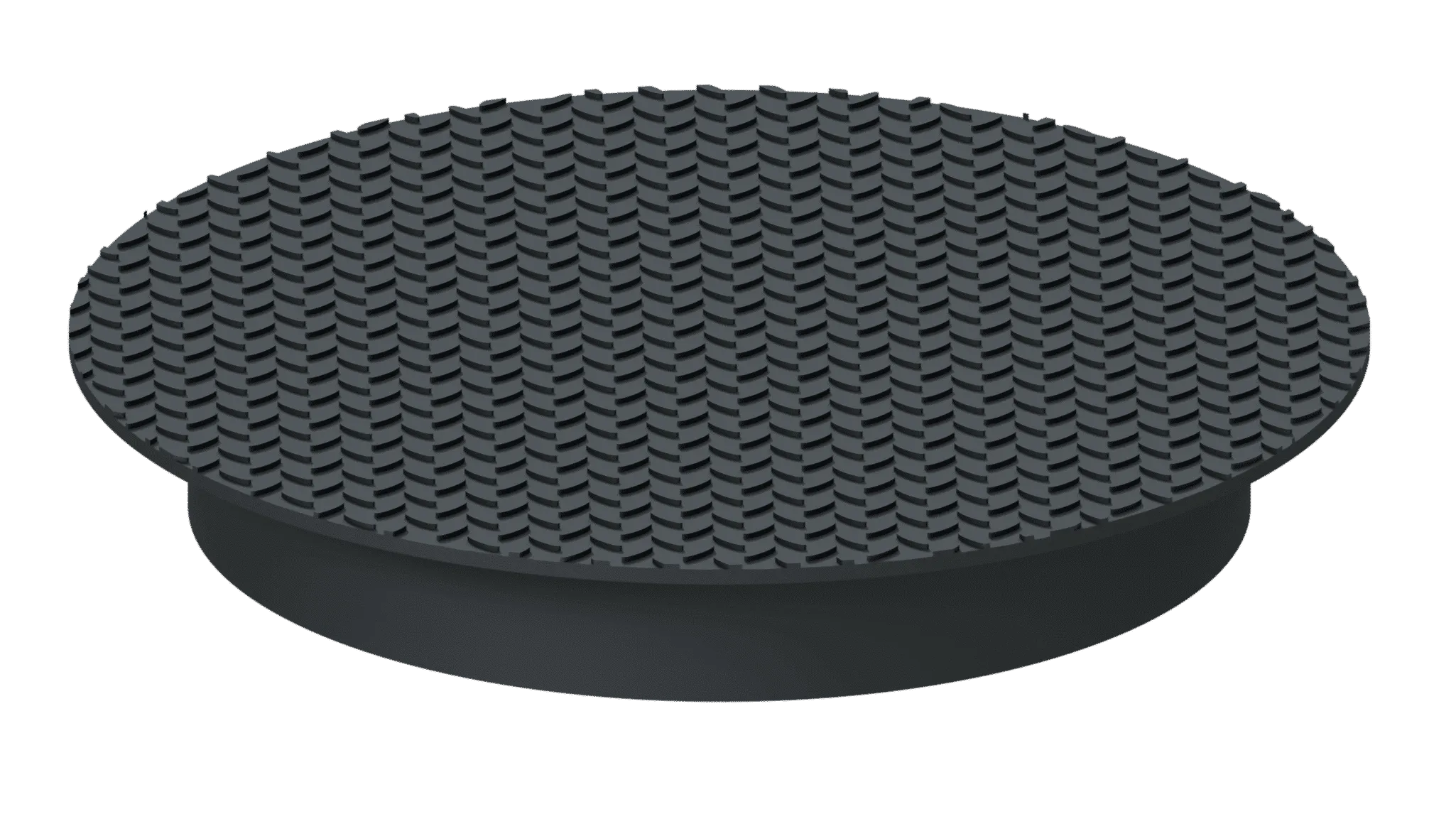

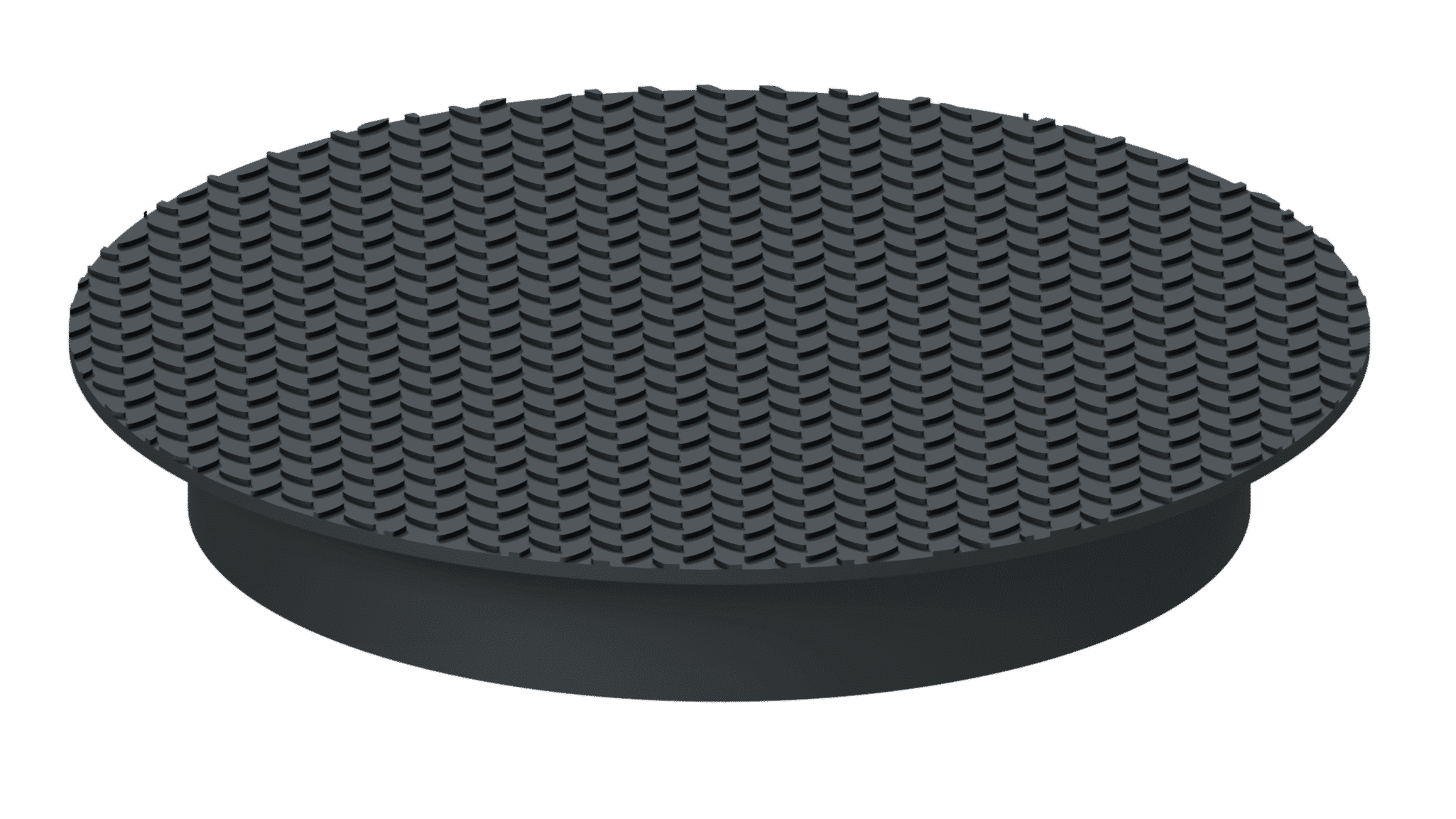

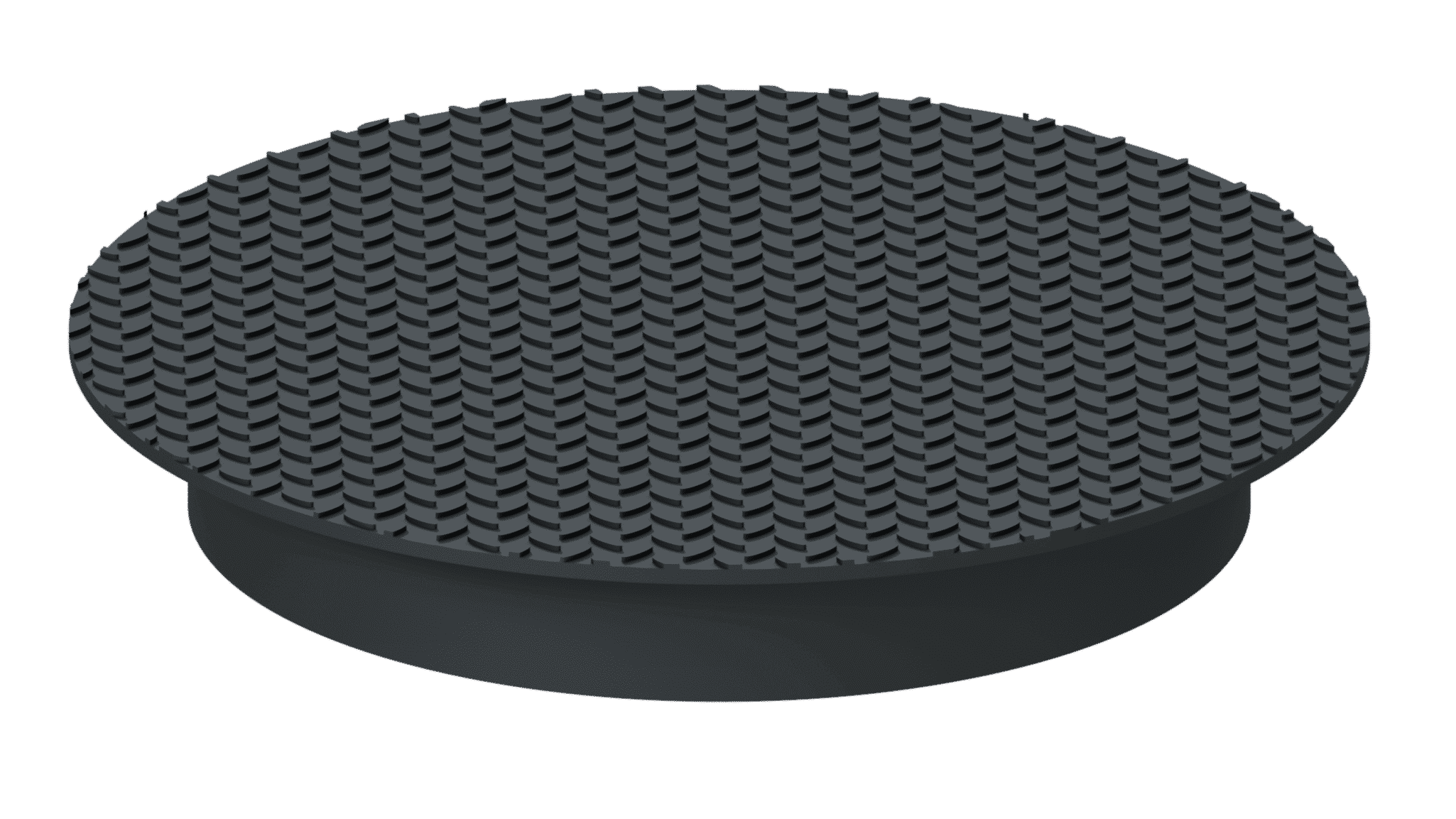

Drop-In Collar
Do you need to cover a hole on your property?
If you are unable to or do not plan to pour a slab to install a manhole frame and cover and are looking for a low effort solution, Manhole Covers Direct can provide a drop in collar cover for you! Our Drop In Collar solutions are engineered to fit into the inside diameter of the hole, with a collar style underside designed to hold the cover in place. The collar depth is 2″ deep, and the outer dimension of the top plate is 2″ wider all around to allow for proper support. We provide replacement manhole covers for a wide variety of applications such as gas stations, marinas, airports, sewers and municipalities, fresh water collection and storage and many other applications. Our products can be customized in almost any way and we can help you with orders large or small. Please let us know if we can help you with something special.
The Drop In Collar is fabricated in 3/8″ steel diamond plate, painted black and comes with your choice of solid with no holes, with a pick/lifting hole or with (3) anchor holes if you desire to secure the cover in place. Keep in mind, the Drop In Collar style will have a lip, and will not be flush with grade unless you are able to create a recessed frame.
Drop In Collars are available in alternative material such as stainless steel or aluminum or powder coated in any available color upon request. Reach out to us today to work up a custom quote or shop our available styles!
