Description

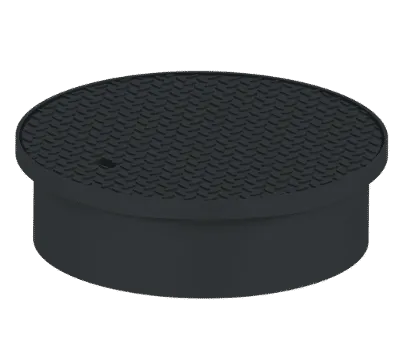

ALL PURPOSE ASTM-A36 CARBON STEEL ACCESS MANHOLES DESIGNED TO BE INSTALLED IN CONCRETE APPLICATIONS. ADA COMPLIANT DIAMOND PLATE COVER WITH NON-SKID SURFACE. RATED FOR H-20 SINGLE POINT WHEEL LOADING FOR VEHICLE TRAFFIC UNDER 25MPH. HEAVY DUTY T FRAME AND 14 GAUGE SKIRT, ALL WELDED CONSTRUCTION. PAINTED BLACK FINISH. MADE IN THE USA.

Choose cover diameter, cover style, and skirt length to create your custom selection.

Diameter:

  • Choose from 8″, 12″, 18″, 20″, 24″, 30″, 32″, 36″, 38″, 42″, 48″, 60″.

Frame:

  • Heavy-duty T frame with 14 gauge hot rolled carbon steel skirt
  • Choose frame depth of 4″, 6″, 8″, 12″ 18″, 24″, 36″

Cover:

  • A36 Carbon Steel Diamond Plate Cover
  • Non skid surface
  • H-20 wheel loading
  • Cover Style:
    • Lay in with pick holes or handles
    • Bolt down with buna gasket and water-tight recessed handles and stainless steel hardware

Finish:

  • Painted Black
  • Made in the USA

Need Base Flange Frame Instead?

round-manhole-covers-and-frames

Choose cover diameter, cover style, and skirt length to create your custom selection.

Diameter:

  • Choose from 8″, 12″, 18″, 20″, 24″, 30″, 32″, 36″, 38″.

Frame:

  • Heavy-duty frame with flat bar skirt
  • Choose frame depth of 2″, 3″ 4″, 5″, 6″, 8″, 12″

Cover:

  • A36 Carbon Steel Diamond Plate Cover
  • Non skid surface
  • H-20 wheel loading
  • Cover Style:
    • Lay in with pick holes or handles
    • Bolt down with buna gasket and water-tight recessed handles and stainless steel hardware

Finish:

  • Painted Black
  • Made in the USA
